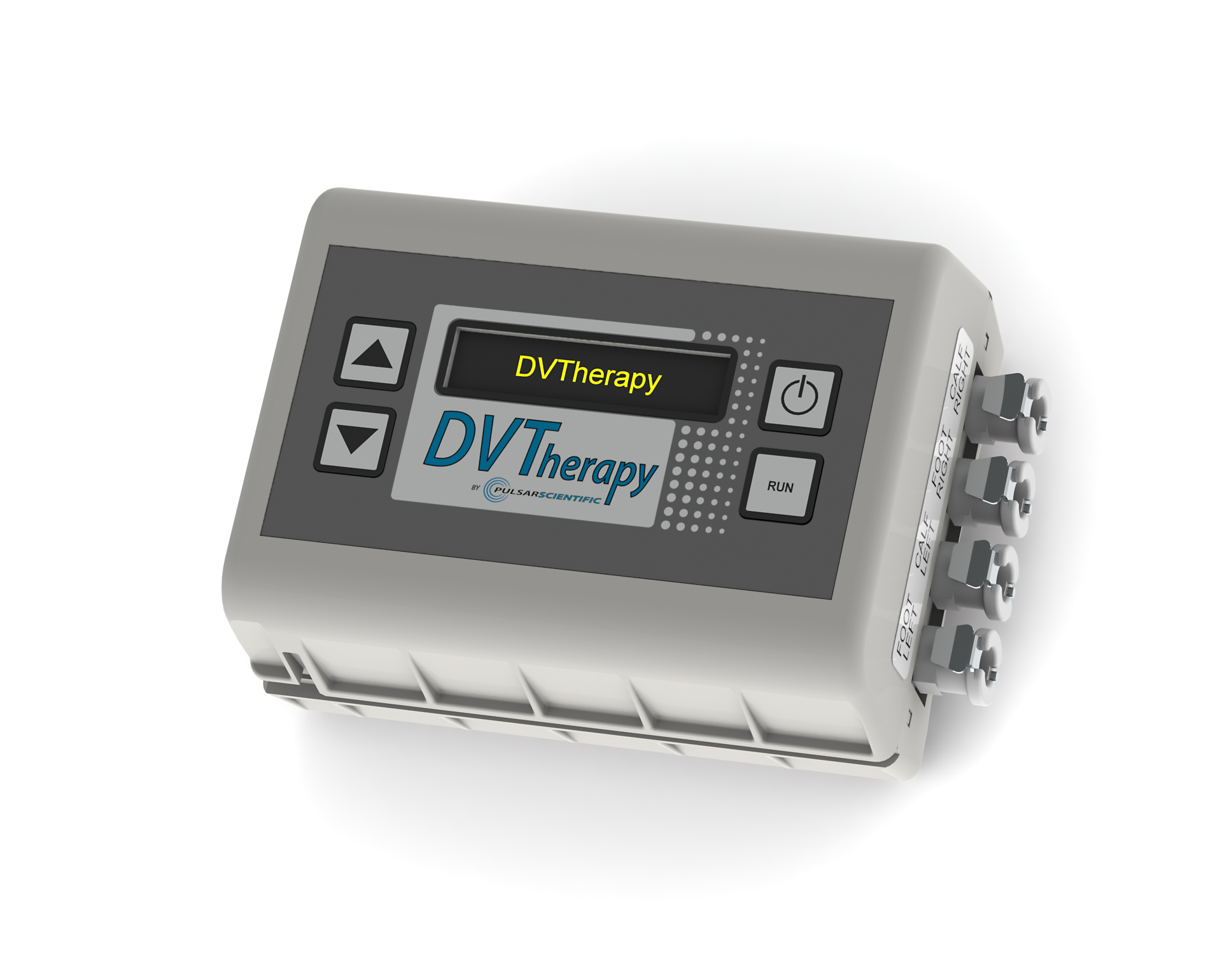

DVTherapy Description

The DVTherapy is a lightweight, portable pneumatic
compression system that aids in the prevention of Deep
Vein Thrombosis (DVT).  The DVTherapy may be run as a
stand-alone device, or it may be docked into the Recovery+
to add DVT prophylaxis to the Recovery+ thermal
compression system.

Patent Pending

Available DVT Prevention Therapies

Foot 120 mmHg, single or bilateral
Calf 50 mmHg, single or bilateral
Sequential Foot 120 mmHg and Calf 50 mmHg, single or bilateral

For all therapies, the foot and calf pressure setpoint may be adjusted through the DVTherapy programming interface:
Foot pressure adjustable between 90 mmHg and 130 mmHg
Calf pressure adjustable between 35 mmHg and 65 mmHg

Key Features

• The DVTherapy features 4 pneumatic compressing ports for up to 4 individual compression chambers.
• Bright, easy to read OLED Display
• Reliable design with easy access to serviceable wear parts.  This minimizes downtime and cost to distributors.
• The DVTherapy saves patient usage data to an internal SD card, allowing verification that patient followed the prescribed therapy regimen.
• The DVTherapy self diagnosis operational and mechanical faults.  The equipment notifies patients via the display screen when common operational mistakes are made (e.g. pinched wrap lines).  System faults are also displayed which minimizes distributor service calls and provides distributors the ability to make certain repairs.
• The DVTherapy may be customized so that the main screen displays the distributor name and telephone number.

Programming and Software Features

• Simple programming interface allows selection of the DVT prevention therapy, and allows adjustment of foot and calf pressure setpoints.
• Software updates are performed using an SD card, eliminating the need to attach the DVTherapy+ to a PC

Specifications

Model Name	DVTherapy
Model Number	PS511A
Dimensions	4.32"W x 5.67"L x 2.50"H
Weight	1.5 lbs
Electrical	115 VAC, 60Hz input
Power supply and battery charger	12 VDC, 2A output
Runtime between battery charges	15-17 hours
Battery Recharge time	3-8 hours
FDA 510(k) listed
Meets ANSI/AAMI 60601 medical safety standard
